Advanced Manual PAT Testing kit with Data Logging for 999 assets
Di-log DLPT2+ c/w FREE Data Logger Software
A fantastic value simple-to-use PAT tester with a comprehensive range of tests, data storage, label printing features and free datalogger software.
Click to request Demo DLPT2+ Data Transfer

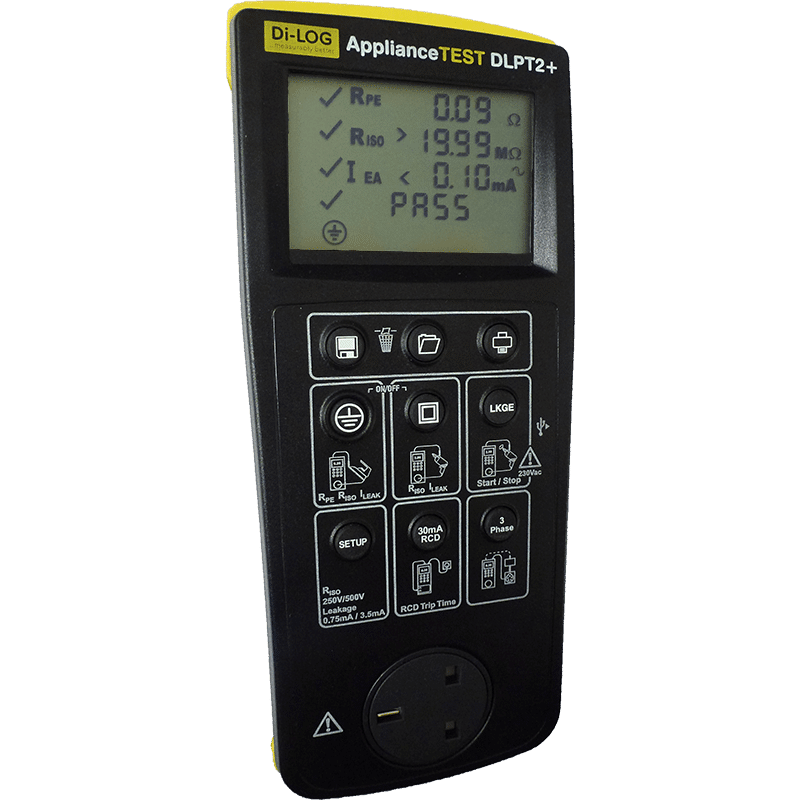

The ApplianceTEST DLPT2+ offers fast and efficient electrical safety testing with label printing and data storage, including free datalogger software. Enabling simple, professional and fast PAT testing, this versatile tester features all of the required tests of the IET 4th Edition Code of Practice along with USB download. It is also fully compatible with the new Test n Tag Pro serial printer for quick and easy label printing without any setup required – just plug and print.
A Seaward datalogger program is supplied as standard and this along with the single key download feature allows measurement data to be quickly and easily transferred from the ApplianceTEST DLPT2+ to PC at the press of a button; whilst all records are date stamped for complete traceability.
Data is downloaded in CSV format and can be accessed by a wide range of software packages or alternatively imported directly into PATGuard 3 Elite for truly professional reports and certificates.
As with all Di-Log battery powered PAT testers, accurate earth continuity tests are a given thanks to the unique patent pending “zap” circuit design.

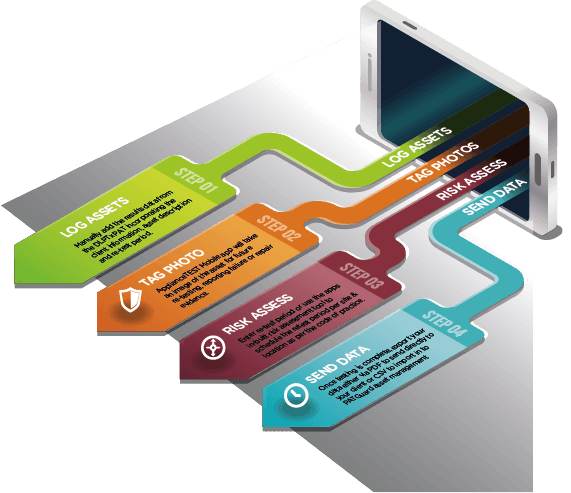

Available soon, ApplianceTEST Mobile, Di-LOG’s new mobile app makes manually recording data quicker and easier when using the ApplianceTEST DLPTx series of PAT Tester. Scan barcodes, tag image, risk assess site, enter results & send via PDF or export data to CSV and with the optional Bluetooth printer, print your labels.
Di-LOG PAT Solution Kit Contents
- DLPTx series PAT
- Hard Carry Case
- 110v Adaptor
Key Features
- Very easy to use
- Plug and print – easy label printing with no setup (printer optional)
- Date stamped results for full traceability
- Single key save
- Single key download
- Download software included
- Store 999 appliance records
- Industry standard download format
- Comprehensive range of electrical tests
- Test 3 phase appliances
Electrical Test Functions
- Low current earth continuity test guaranteeing accurate measurement
(patent pending) - Insulation resistance at 250/500V
- IEC lead test
- Protective conductor current
- Touch current
- 3 Phase leakage current (requires adaptor)
- Alternative leakage current
- RCD test (30mA/150mA)
- Power socket test
Specifications
| Earth continuity | 0.00 Ω – 19.99 Ω |
| Insulation resistance | 0.01 MΩ – 199 MΩ |
| Protective Conductor Current (Leakage) | 0.0 mA - 3.50 mA |
| Touch current | 0.0 mA - 3.50 mA |
| Sustitute Leakage | 0.0 mA - 3.50 mA |
| RCD trip time | 0ms – 500 ms 0°/180° auto switched |
| Power socket tests | 230 V +10 % - 15 % AC. L-PE, L-N, N-PE |
| IEC lead tests | Earth test, Insulation and Polarity |
| Power supply | 6 x AA NiMH rechargeable batteries |
| Dimensions | 260 x 100 x 55 mm |
| Weight | 950 g |
