DL6413 TRMS AC Clamp Meter
1000 Amp AC True RMS Digital Clamp Meter
DL6413 TRMS AC Clamp Meter
Di-LOG DL6413 TRMS AC Clamp Meter
The DL6413 TRMS AC Clamp Meter is a high-performance True RMS meter designed for precise measurement of AC currents up to 1000A. It offers a comprehensive suite of features, including capacitance, temperature measurement, and an integrated LED torch. Its compact and ergonomic design makes it ideal for various electrical engineering applications. DL6413 TRMS AC Clamp Meter
Key Features:
- High-Accuracy AC Current Measurement: Up to 1000A
- Capacitance Measurement: For precise component testing
- Temperature Measurement: With K-Type adaptor and thermocouple
- Built-in Ultra-Bright LED Torch: For improved visibility in low-light conditions
- 35mm Jaw Opening: For easy handling in confined spaces
- CAT IV 600V Safety Rating: Ensures reliable and safe operation
- Complete Protection: Across all measurement ranges
Applications:
Electrical engineering | Domestic and commercial solar installations
Industrial maintenance |HVAC systems | Automotive diagnostics
Warranty:
The Di-LOG DL6413 is backed by a 24-month manufacturer warranty covering defects in materials and workmanship. Annual recalibration is recommended to maintain measurement accuracy.
Why Choose Di-LOG DL6413?
The Di-LOG DL6413 offers a comprehensive set of measurement features with a strong focus on safety and reliability. It’s the perfect tool for professionals who need precise, durable, and easy-to-use instruments in the field.
The DL6413 meets all the safety and performance requirements of EN61010 CAT III 1000V & CAT IV 600V.
Register your products for an extended warranty
Slim 35mm tear-shaped jaw designed to access restricted enclosures enabling accurate and effective measurements.

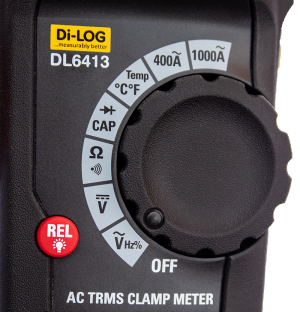

Clear and simple rotary dial to safely select the desired function.
Specifications
| Measurement | Range | Basic Accuracy |
| AC Current true RMS | 0.001A - 400.0A 400.1 - 1000A | 2.5% ± 8 dgts 2.8% ± 8 dgts |
| AC Voltage True RMS | 0.001V - 1000V | 1.5% ± 5 dgts |
| DC Voltage | 0.1mV - 1000V | 1.5% ± 5 dgts |
| Resistance | 0.1Ω - 40MΩ | 1.5% ± 2 dgts (typical) |
| Capacitance | 4.000nF - 40mF | 3% ± 5 dtgs (typical) |
| Frequency | 9.999Hz - 99.9900kHz | 1.2% ± 5 dgts |
| Duty Cycle | 10% - 90% | 1.2% ± 2 dgts |
| Temperature | -20°C - 1000°C -4°F - 1832°F | ±3.0 % of rdg ± 5°C ±3.0 % of rdg ± 9°F |
| Diode Test | 0.3mA into 3.2V DC | N/A |
| Power supply | 3 x AAA V batteries | Included |
| Dimensions | 250 x 78 x 40 mm | |
| Weight | 350g |
