DL6414 TRMS 1000A AC/DC Clamp Meter
1000 Amp AC/DC True RMS Digital Clamp Meter
DL6414 TRMS 1000A AC/DC Clamp Meter
Di-LOG DL6414
1000 Amp AC/DC True RMS Digital Clamp Meter
The Di-LOG DL6414 is a high-performance True RMS digital clamp meter designed for precise measurements in electrical engineering applications. Its robust construction and advanced features including a 1000V DC measurement, Low Impedance and Inrush Current make it suitable for a wide range of tasks, including domestic and medium commercial solar installations.

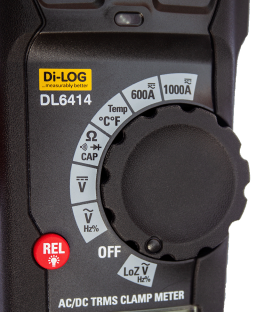

Key Features:
- True RMS Measurement: Ensures accurate readings for complex waveforms.
- Accurate AC/DC Current Measurement: Measures up to 1000A with exceptional accuracy, ensuring reliable results.
- Versatile Voltage Measurement: Handles both AC and DC voltages up to 1000V, making it adaptable to various applications including domestic and commercial Solar Installations.
- Compact and Ergonomic Design: The streamlined body and 35mm jaw opening allow for easy handling and access to confined spaces.
- VFD (Variable Frequency Drive) Mode: Optimized for measuring variable frequency drives.
- Inrush Current Measurement: Captures transient currents for troubleshooting.
- Low Impedance (LoZ): Provides accurate measurements in low-impedance circuits.
- Safety and Protection: Rated CAT IV 600V for safe operation and complete protection across all measurement ranges.
- Integrated LED Torch: Improves visibility in low-light conditions.
Warranty:
The Di-LOG DL6414 is backed by a 24-month manufacturer warranty covering defects in materials and workmanship. Annual recalibration is recommended to maintain measurement accuracy.

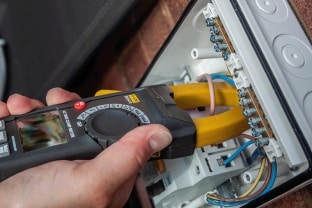

Slim 35mm tear-shaped jaw designed to access restricted enclosures enabling accurate and effective measurements.
Why Choose Di-LOG DL6414?
The Di-LOG DL6414 offers a comprehensive set of measurement features with a strong focus on safety and reliability. It’s the perfect tool for professionals who need precise, durable, and easy-to-use instruments in the field.
The DL6414 meets all the safety and performance requirements of EN61010 CAT III 1000V & CAT IV 600V.
Specifications
| Measurement | Range | Basic Accuracy |
| AC Current true RMS | 0.1A - 600.0A 600.1 - 1000A | 2.5% ± 8 dgts 2.8% ± 8 dgts |
| DC Current | 0.1A - 600.0A 600.1 - 1000A | 2.5% ± 5 dgts 2.8% ± 5 dgts |
| AC Voltage True RMS (Auto Ranging) | 0.001V - 6.000V 6.000V - 60.00V 60.01V - 600.0V 600.1V - 1000V | 1.5% ± 5 dgts 1.5% ± 5 dgts 1.5% ± 5 dgts 1.5% ± 5 dgts |
| DC Voltage (Auto Ranging) | 0.1mV - 600.0mV 600.1mV - 6.000V 6.001V - 60.00V 60.01V - 600.0V 600.1V - 1000V | 0.5% ± 5 dgts 1.5% ± 2 dgts 1.5% ± 2 dgts 1.5% ± 2 dgts 1.5% ± 2 dgts |
| LoZ (Auto Ranging) | 0.00V1 - 6.000V 6.001V - 60.00V 60.01V - 300.0V | 3.0% ± 40 dgts |
| Resistance (Auto Ranging) | 0.1Ω - 600.0Ω 600.1Ω - 6.000kΩ 6.001kΩ - 60.00kΩ 60.01kΩ - 600.0kΩ 600.1kΩ - 6.000MΩ 6.001MΩ - 60.00MΩ | 1.0% ± 4 dgts 1.5% ± 2 dgts 1.5% ± 2 dgts 1.5% ± 2 dgts 2.5% ± 3 dgts 3.5% ± 5 dgts |
| Capacitance (Auto Ranging) | 0.01nF - 60.00nF 60.01nF - 600.0nF 600.1nF - 6.000µF 6.001µF - 60.00µF 60.01µF - 600.0µF 600.1µF - 6.000mF 6.001mF - 60.00mF 60.01mF - 100.0mF | 4.0% ± 20 dtgs 3.0% ± 5 dtgs 3.0% ± 5 dtgs 3.0% ± 5 dtgs 3.0% ± 5 dtgs 5.0% ± 8 dtgs 3.0% ± 15 dtgs |
| Frequency | 9.999Hz - 99.99kHz | 1.2% ± 5 dgts |
| Duty Cycle | 10% - 90% | 1.2% ± 2 dgts |
| Temperature | -20.0°C - 1000°C -4.0°F - 1832°F | ±3.0 % of rdg ± 5°C ±3.0 % of rdg ± 9°F |
| Diode Test | 0.3mA into 3.2V DC | N/A |
| Power supply | 3 x AAA V batteries | Included |
| Dimensions | 250 x 78 x 40 mm | |
| Weight | 350g |
