Lamp Tester

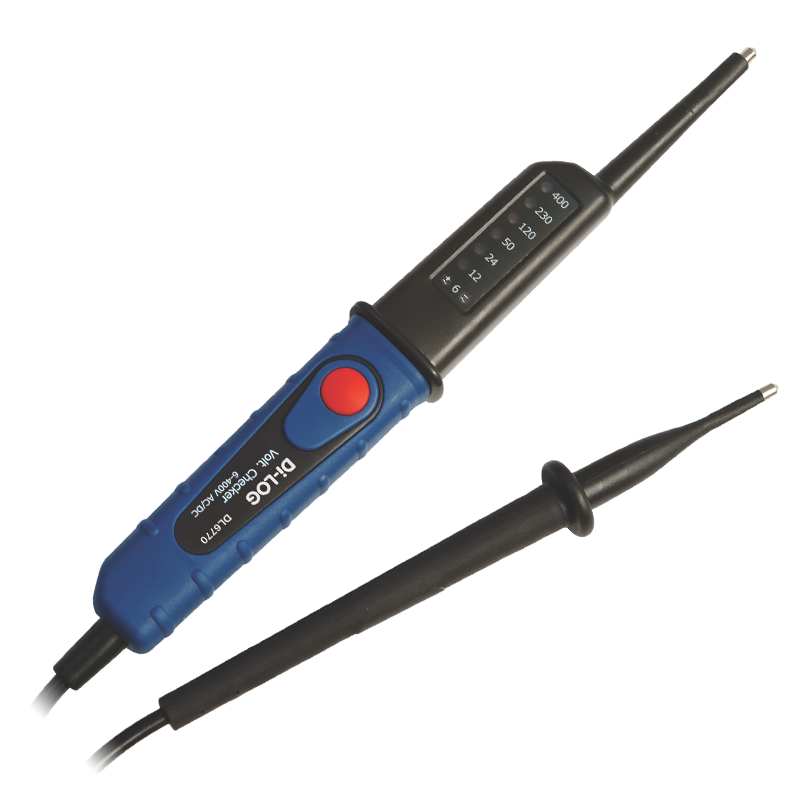

| Indication | 6 LED’s (6, 12,24,50,120,230,400V) |
| Voltage range | 6 - 4000 V AD/DC |
| Continuity | N/A |
| Frequency | 0 – 60 Hz |
| Overvoltage category | Cat 111 / 400V |
| Power supply | Non required |
| Dimensions | 230 x 53 x 45 mm |
| Weight | 210 g |
