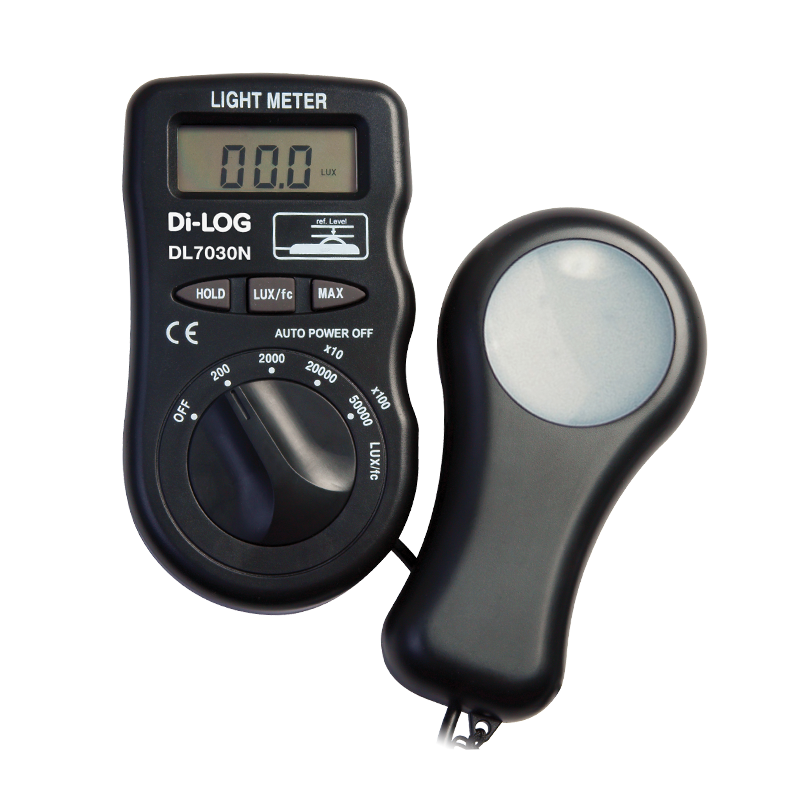

Digital Light Meter
Digital LCD display.
| Display | 3½ Digit |
| Lux range/resolution | 0-2000/1.0 lux 0 – 20,000/10 lux 0 – 50,000/100 lux |
| Accuracy | ± 5 % rdg + 3 digits |
| Power supply | 1 x 9 V. IEC 6LR61 |
| Dimensions | 120 x 65 x 25 mm |
| Weight | 237g |
