DL9130EV 18th Edition Advanced EV MFT
Designed for the EV Installer
DL9130EV 18th Edition Advanced EV MFT
DL9130EV 18th Edition Advanced EV MFT
The DL9130EV 18th Edition Advanced EV MFT has been explicitly designed for engineers that offer EV installation as part of their testing portfolio.
The DL9130EV has several exciting new features critical to the safe verification of EVSE Charge Station Installations. Including a 6mA pure DC test for RDC-DD verification which can be combined with a full Auto EV testing sequence. The Auto EV sequence feature simply varifies the DC protection provided by the EV charger, along with the Type A RCD protection provided by the sub distribution board.
Brand New Features
A brand-new feature explicitly added to the DL9130EV is Rmax. This brand-new concept will automatically capture the maximum R1+R2/R2 continuity test reading which will register the result on the secondary display for recording once testing is complete. In addition, Di-LOG has added the Zmax feature.
Type B RCD Testing
Type B RCDs are becoming more frequent in PV and EV installations, so it is vital that when needed, your multifunction tester can perform a Pure DC RCD test. A variable RCD feature has also been added to the DL9120 & DL9130EV enabling the user to dial in bespoke mA values when the need arises.
Intelligent User Features a the press of a button
With a brand new RGB colour changing screen that visually indicates potential pass/fail conditions, the DL9130EV offers intelligent user features. One of our intelligent features is Zmax, this will record the maximum Zs test recorded during a recording session. A fully automated Continuity & Earth Loop Auto Start with a secondary display to capture the recorded results. Never seen before on a multifunction tester, is the high current loop with intelligent detection identifying if the user is conducting a 2 wire or 3 wire Loop/PSCC measurement without the need for selection.
The DL9130EV offers incredible value for a feature packed MFT meeting all the safety and performance requirements of BS EN 61557.
Key Features
- 6ma RDC-DD Pure DC Test
- Auto EV Test Sequence
- Auto Start Loop & Continuity tests
- Type AC, A, B & Selective (S) RCD Testing
- Rmax & Zmax
- Variable RCD Test
- 1000V Insulation test
- Colour LCD display with colour change feature
- Supplied with a UKAS Calibration Certificate fully traceable to national standards
Click here to register your DL9100 Series MFT

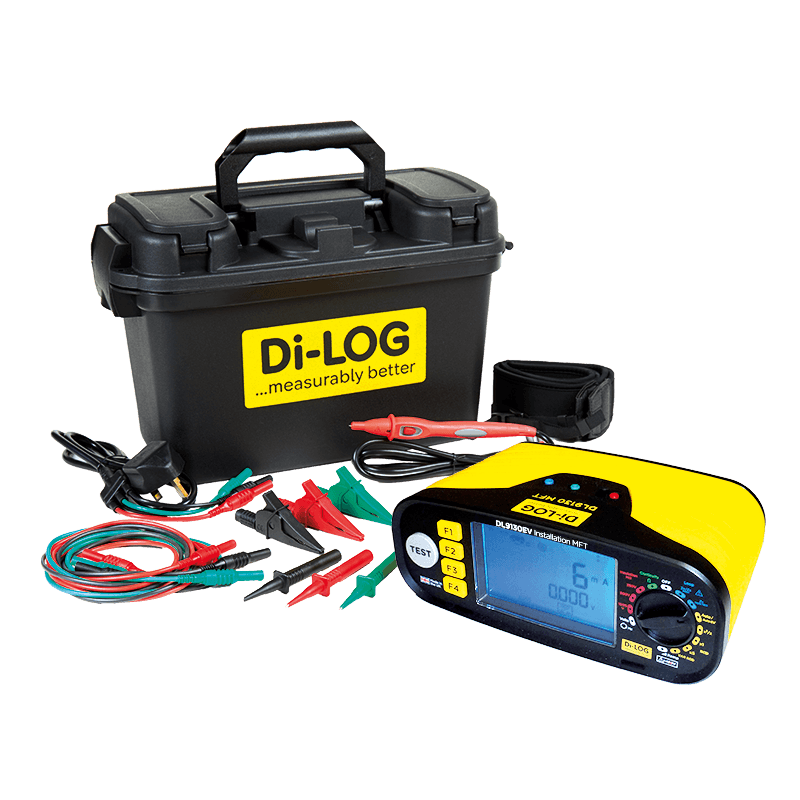

The ultimate 18th Edition Advanced MFT Test Kit
Features
- 6mA pure DC test for RDC-DD verification and a full Auto EV testing sequence for verifying the DC protection provided by the EV charger, along with the Type A RCD protection
- Loop Impedance/PSCC – Unique auto start RCD-LOC XLT loop test principle will not trip any RCD or RCBO
- 2/3 wire high current loop with intelligent detection identifying if the user is conducting a 2 wire or 3 wire Loop/PSCC measurement without the need for selection
- RGB colour changing screen visually indicating potential pass/fail conditions
- Phase to Phase Loop with Phase Rotation Test – will indicate the correct phase sequence
- Continuity test – with auto start & null facility to zero out lead resistance
- Auto RCD testing – Trip time, trip current, auto test and ramp current
- Type AC, A, B & Time Delayed RCDs (S)
- Insulation measurement – with 250, 500 & 1000V test voltages
- Phase Rotation Test – will indicate the correct phase sequence
- Integrated socket polarity test
- Fully protected against damage when accidentally connected across phases

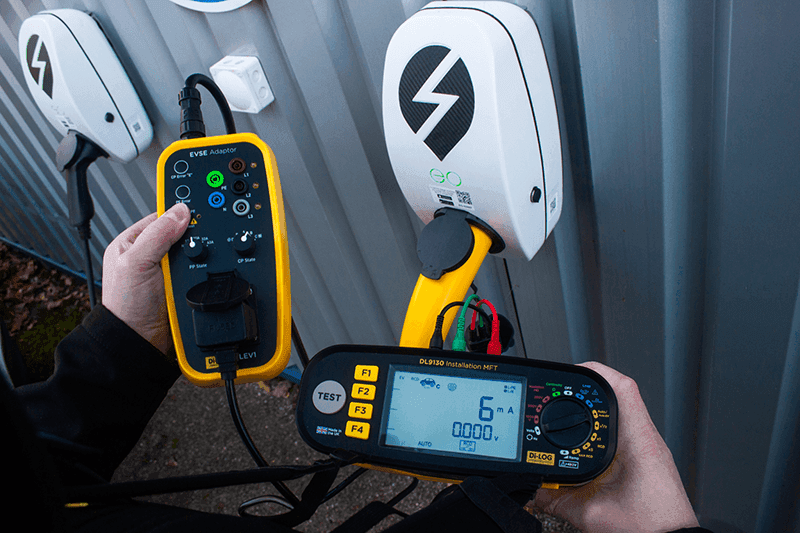

DL9130EVKIT which includes DL9130EV with DLEV1 EVSE Adaptor Kit
