Di-LOG

PL107N

Non Contact Voltage Indicator

PL107N

PL107N

Non Contact Voltage Detector Products

PL107N Non Contact Voltage Indicator

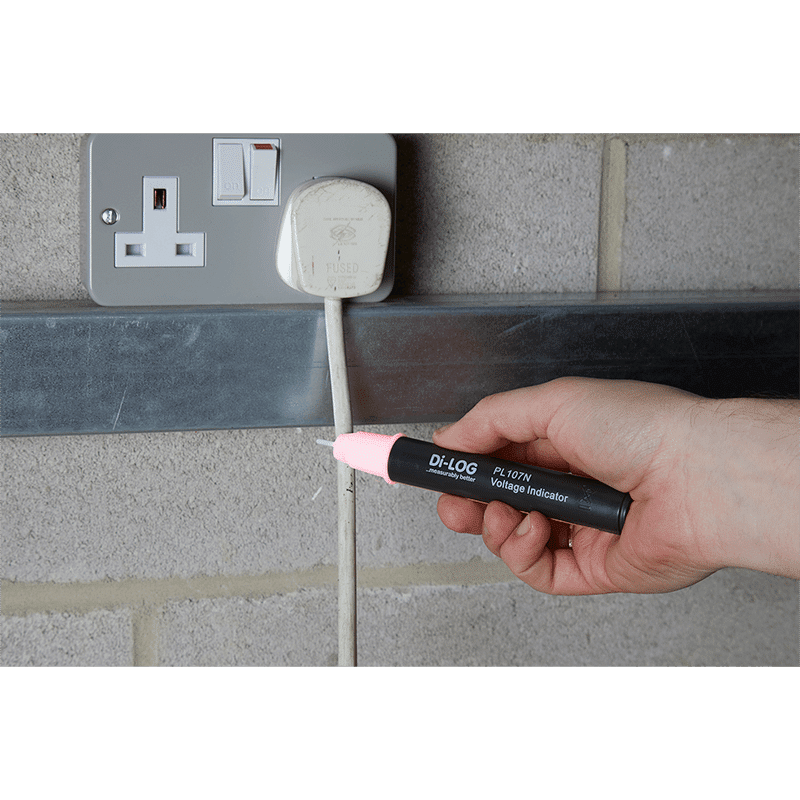

The PL107N is a Non contact- optical and acoustic indication of AC voltages between 90-1000V. Clear, omni-directional flashing LED. Quick and accurate detection of cable breaks cables, Phase detection in sockets.

Features:

  • Contact-free audible and visual indication of AC voltages between 90 and 1000 V AC
  • Clear, omnidirectional flashing LED
  • Quick and accurate detection of cable breaks

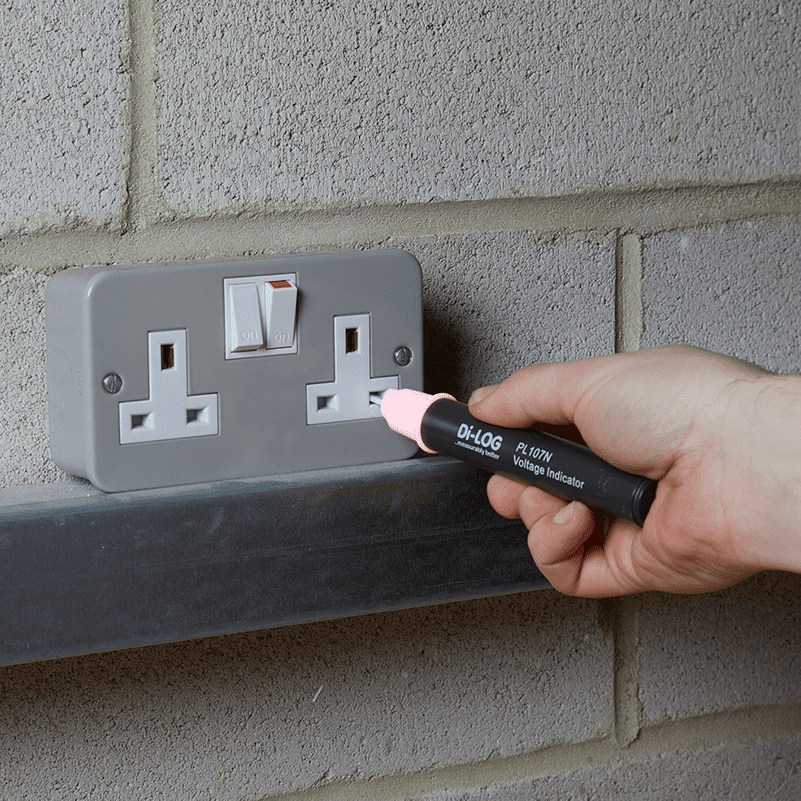

  • Phase detection in sockets
  • Press to test switch avoids nuisance buzzing and extends battery life
  • Supplied complete with 1.5 V AAA batteries

Specifications

Indication1 LED, buzzer
Voltage range90 – 1000 V AC
Operating temperature-10° to 50°C
Overvoltage categoryCat 111 / 600 V
Power supply2 x 1.5 V AAA batteries
Dimensions150 x 22 x 21 mm
Weight60 g
